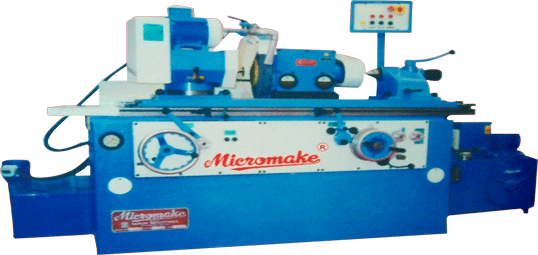

Hydraulic Cylindrical Grinder

a1

Products

A Main Specification
Description
 Units 600 800 1000 1250 1500
Capacities.
Centre Height
mm 150 150 150 150 150
Max.Grinding Length
 mm 400 600 800 1250 1500
Max. Weight of job
Kgs 60 80 100 125 150
Wheel Head
Grinding Wheel Size
O.D.
mm 400 400 400 400 500
I.D.
 mm 127 127 127 127 254
Width
 mm 40 40 40 40 60
Gr. Wh.Cutting Speed
 Mts/Sec 30 30 30 30 30
Gr. Wh. Hydraulic Rapid Approach/Retraction**
 mm 45 45 45 45 45
Gr.Wh.Motor Power
 KW 2.25 2.25 2.25 3.75 5.625
Work Head
Work head speed{dual}
no. 8 8 8 8 8
Speed Range
RPM ---------------------56-360---------------------
Work head Centre
MT 4 4 4/5* 4/5* 5
Work head Swivel
 degree +/-90 +/-90 +/-90 +/-90 +/-90
Work head Motor Power
KW 0.75 0.75 0.75 1.125 1.5
Table
Max.Table Travel
 mm 610 810 1010 1260 1510
Table Speed
mts/min. 0.2-5 0.2-5 0.2-5 0.2-5 0.2-5
Dowel at Reversal**
 0to10 0to10 0to10 0to10 0to10 0to10
Center
 MT 4 4 4/5* 4/5* 5
Quill Movement
 mm 30 30 30 30 30
*Optional
**Special Model
B Scope Of Supply
Micromake - Cylindrical Grinding Machine with specification as per A and Including following features.
  • Electric equipments for 3 Phase,415 Volts,50 Cycle AC supply.
  • Complete Hydraulic power pack unit dully fitted with motor,pump and tank.
  • Complete Coolant equipment with motor,pump,and tank without magnetic filter.
  • Work head spindle motor with dual speed.{Variable speed optional}
  • Guideways of wheel head slide & main Table dully coated with Turcite "B" *
  • Wheel head slide Rapid Approach/Retraction hydraulic & feed Automatic,Including MICRO FEED arrangement. **
  • Grinding Wheel head mounted on single slide,The movement of hydraulic Rapid Approach & Auto/Manual feed through V & Flate guideways the feed Screw acts as piston to the hydraulic cylinder. **
  • Wheel balancing Arbor.
  • Separate Electric Control Penal in machine.
  • Machine with continuous Lubrication.
  • One grinding wheel with standard wheel flange & balancing blocks.
  • Extractor for grinding wheel.
