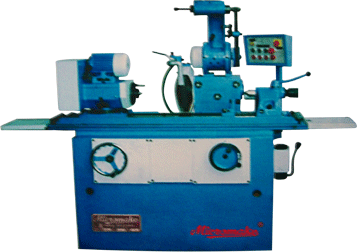

Hydraulic Cylindrical Grinder - 400
Products
- Double Disc Grinder
- Hydraluc Cylinedrical Grinder 3000
- Hydraluc Cylinedrical Grinder
- Hydraluc Cylinedrical Grinder 400
- Lapping Machine 400 mm
- SPM
- External Grinder
- Internal Bore Grinder
- Hydraulic Internal Track Grinding Machine with Auto Cycle
- Rotary Table Surface Grinder Machine Cum Vertical Turning Lathe
- SS Round Pipe Making Machine
A Main Specification |
||||||
| Description |
Units | 400 | ||||
| Capacities. | ||||||
| Centre Height |
mm | 130 | ||||
| Max.Grinding Length |
mm | 400 | ||||
| Max. Weight of job |
Kgs | 40 | ||||
| Wheel Head | ||||||
| Grinding Wheel Size | ||||||
| O.D. |
mm | 300 | ||||
| I.D. |
mm | 127 | ||||
| Width |
mm | 25 | ||||
| Gr. Wh.Cutting Speed |
Mts/Sec | 30 | ||||
| Gr. Wh. Hydraulic Rapid Approach/Retraction** |
mm | 45 | ||||
| Gr.Wh.Motor Power |
KW | 1.125 | ||||
| Work Head | ||||||
| Work head speed{dual} |
no. | 8 | ||||
| Speed Range |
RPM | 56-360 | ||||
| Work head Centre |
MT | 3 | ||||
| Work head Swivel |
degree | +/-90 | ||||
| Work head Motor Power |
KW | 0.37 | ||||
| Table | ||||||
| Max.Table Travel |
mm | 410 | ||||
| Table Speed |
mts/min. | 0.2-5 | ||||
| Dowel at Reversal** |
0to10 | 0to10 | ||||
| Center |
MT | 3 | ||||
| Quill Movement |
mm | 30 | ||||
| *Optional **Special Model |
||||||
| B Scope Of Supply | ||||||
| Micromake - Cylindrical Grinding Machine with specification as per A and Including following features. | ||||||
|
||||||
