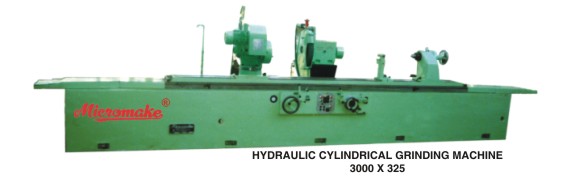

Hydraulic Cylindrical Grinder - 3000
Products
- Double Disc Grinder
- Hydraluc Cylinedrical Grinder 3000
- Hydraluc Cylinedrical Grinder
- Hydraluc Cylinedrical Grinder 400
- Lapping Machine 400 mm
- SPM
- External Grinder
- Internal Bore Grinder
- Hydraulic Internal Track Grinding Machine with Auto Cycle
- Rotary Table Surface Grinder Machine Cum Vertical Turning Lathe
- SS Round Pipe Making Machine
A Main Specification |
||||
| Description |
Units | 2000 | 2500 | 3000 |
| Capacities. | ||||
| Centre Height |
mm | 255 | 255 | 255 |
| Max.Grinding Length |
mm | 2000 | 2500 | 3000 |
| Max. Weight of job |
Kgs | 200 | 250 | 300 |
| Wheel Head | ||||
| Grinding Wheel Size | ||||
| O.D. |
mm | 500 | 500 | 500 |
| I.D. |
mm | 254 | 254 | 254 |
| Width |
mm | 60 | 60 | 60 |
| Gr. Wh.Cutting Speed |
Mts/Sec | 30 | 30 | 30 |
| Gr. Wh. Hydraulic Rapid Approach/Retraction** |
mm | 45 | 45 | 45 |
| Gr.Wh.Motor Power |
KW | 5.625 | 5.625 | 5.625 |
| Work Head | ||||
| Work head speed{dual} |
no. | 8 | 8 | 8 |
| Speed Range |
RPM | ------------56-360----------- | ||
| Work head Centre |
MT | 5 | 5 | 5 |
| Work head Swivel |
degree | +/-90 | +/-90 | +/-90 |
| Work head Motor Power |
KW | 1.5 | 1.5 | 2.25 |
| Table | ||||
| Max.Table Travel |
mm | 2010 | 2510 | 3010 |
| Table Speed |
mts/min. | 0.2-5 | 0.2-5 | 0.2-5 |
| Dowel at Reversal** |
0to10 | 0to10 | 0to10 | 0 to10 |
| Center | MT | 5 | 5 | 5 |
| Quill Movement |
mm | 30 | 40 | 40 |
| *Optional **Special Model |
||||
